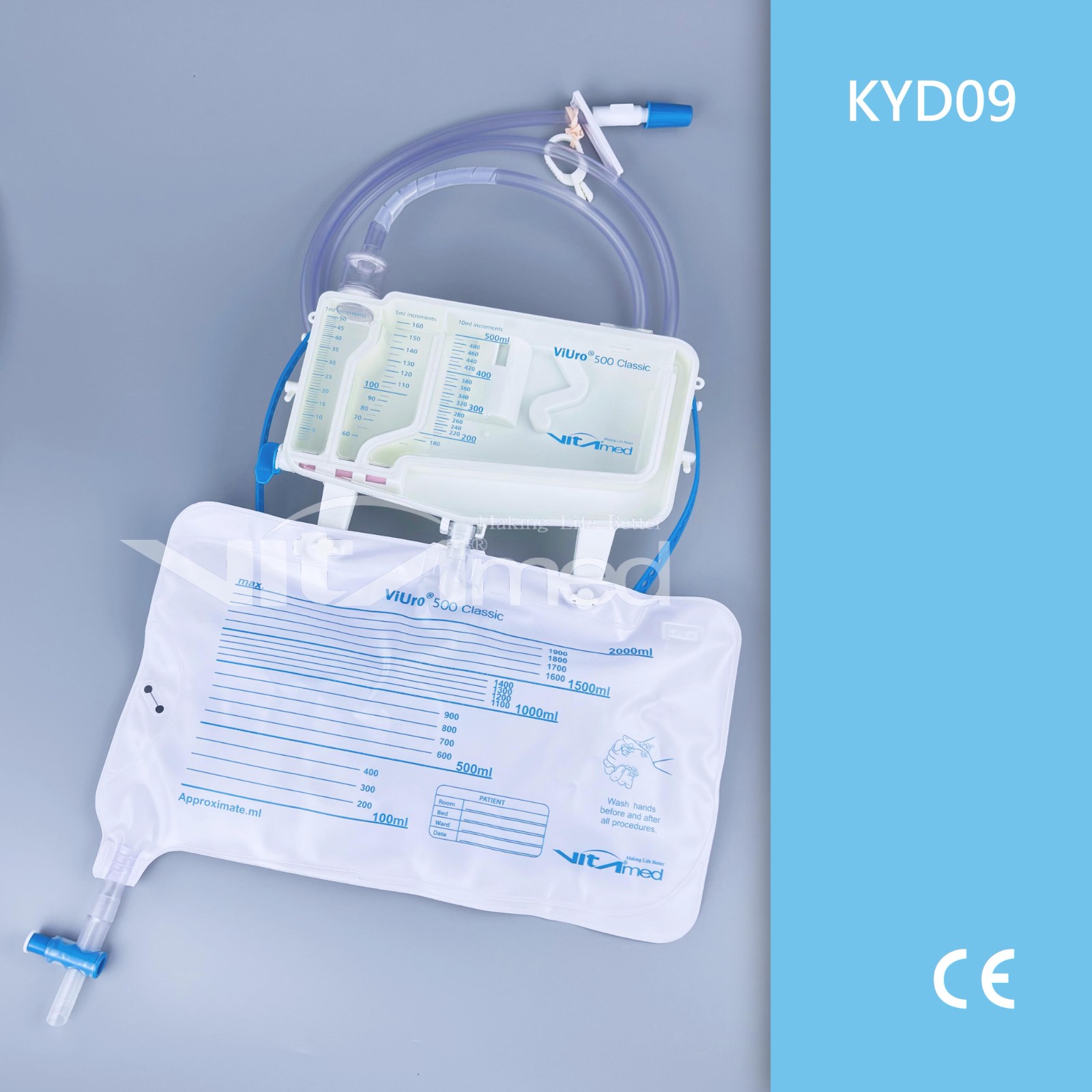

Urine Meter ViUro® 500 Classic with bottom outlet bag

ViUro® 500 Classic with bottom outlet bag

Urine measurement system for diuresis

ViUro® 500 Classic is a closed sterile urine measurement system dedicated to diuresis and evaluation of urine quality, which allows an accurate urine volume measurement. The set includes a bottom outlet bag pre-mounted on a rigid 3-compartment container.

Indication

ViUro® is intended for closed urinary drainage and concomitant monitoring of the urinary output of critically ill patients.

Jetzt anfragen

Produktbeschreibung

Product name:Urine Meter ViUro® 500 Classic with bottom outlet bag Code No.:KYD09

Product Description:ViUro® 500 Classic Description: Capacity:2000ml+500ml Rigid 3-compartment container with a capacity of 500 ml Transparent tubing with slide clamp Anti-reflux valve and air inlet to prevent urine back flow Needleless Sampling Port with Cap T-Tap Outlet Valve 2 punched hole straps removable hook

Item No.

Description

Packing

Specifications

KYD09

ViUro® 500 Classic Description:

Capacity:2000ml +500ml
Rigid 3-compartment container with a capacity of 500 ml
Transparent tubing with slide clamp
Anti-reflux valve and air inlet to prevent urine back flow
Needleless Sampling Port with Cap
T-Tap Outlet Valve
2 punched hole straps
removable hook

Ctn Size: 58x30x25cm, 10pcs/ctn G.W./N.W.: 5/4 Kgs

Capacity: 500ml+2000ml, three chamber

STICHWORTE: Urine Meter, Urine Collections Closed Systems, night and day urine bag, urine collection bag, urine drainage bag, adult urine collection bag, Exact Measure Pediatric Urine Meter, Precision Urinary Bags, Urinary Drainage Bag, Standard Urine Meter Add-A-Foley Tray...

Produktmerkmale

Features

§ Rigid 3-compartment container with a capacity of 500 ml

§ Dry Pasteur drip chamber with anti-reflux valve to prevent retrograde migration of bacteria and venting air inlet filters for pressure balance

§ Vented measuring chamber divided in 3 compartments with 50 ml, 150 ml and up to 500 ml fine measuring for accurate urine measurement

§ Emptying of the container with clearly identified flow direction on the tap

§ 2 L bottom outlet bag pre-mounted

§ Simple twist bayonet connector for safe connection without leakage

§ Anti-reflux valve and air inlet to prevent urine back flow

§ Bag design with approximate graduation scale and clear patient identification space

§ Free flow, no touch, bottom cross-outlet for quick and clean emptying

§ Cross-outlet can be stored horizontally to decrease the risk of infection

§ Transparent tubing with slide clamp, available in 120 cm, 170 cm or 200 cm length

§ Needle-free sampling port on the tubing stage connector to match international recommendations for a better safety of the user

§ Large choice of fixation solutions on all types of beds and supports:

§ 2 punched hole straps pre-mounted on the container for permanent fixation on the bed frame

§ Integrated removable hook pre-mounted on the back side of the container for quick fixation

§ Pin and tip jack system for permanent fixation and quick repositioning

§ Removable fixation plate
